HowTo: Configure Page Content Type and metadata mapping in UCM to SharePoint/Drupal website migration

Content Type and Metadata mapping of UCM to SharePoint/Drupal page content for website migration

1. Map the Page/WebPage content type to Article Page
   Content Type Mapping:  WebPage -> Article Page


2. Mapped the common metadata fields for Page Content Type as shown below
   Common metadata mapping fields:






   Target Metadata	Mapping Type	Metadata Value
   Title	Metadata	dDocTitle
   Page Content	Script	Script to obtain Body from page
   Page Image	Script	Script to obtain Image from page

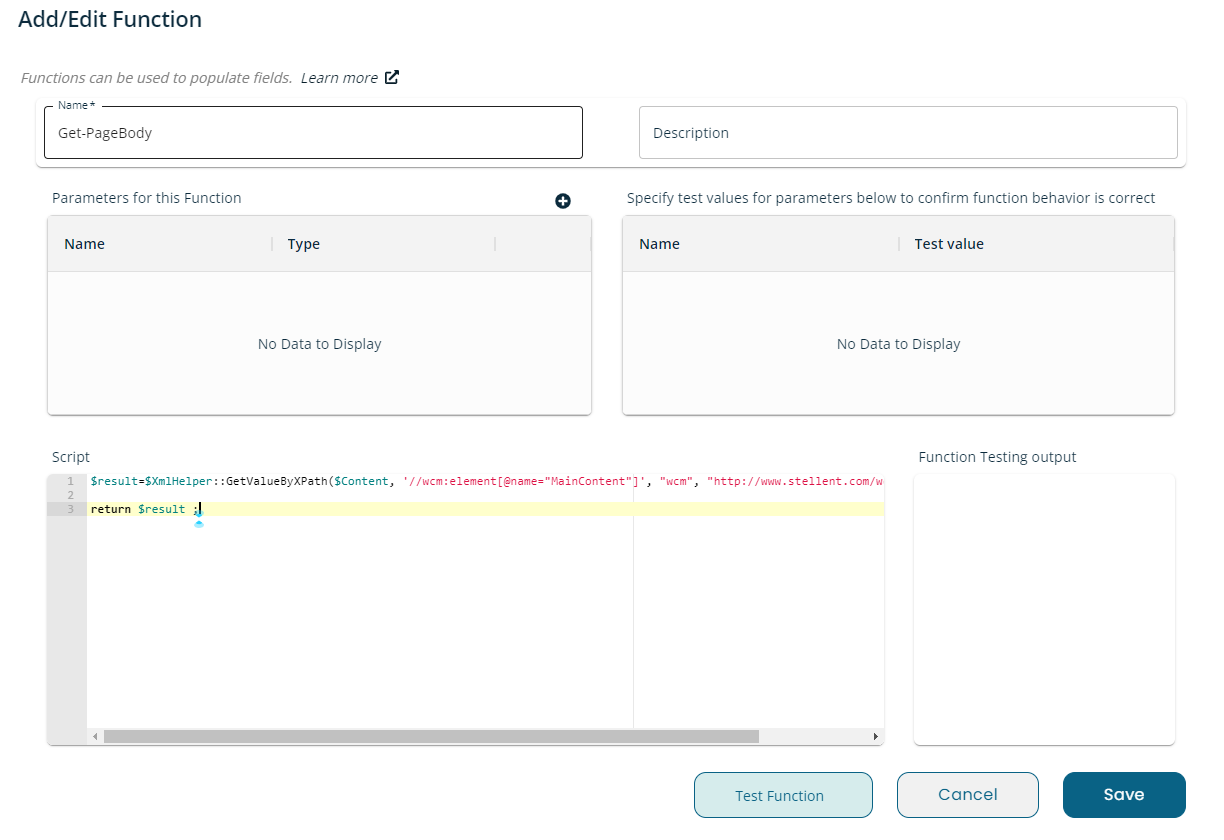

3. Use the following scripts for Body and Image to get the page contents and images from page:

   Target Metadata Field	PowerShell Script
   Page Content	$result=$XmlHelper::GetValueByXPath($Content, '//wcm:element[@name="MainContent"]', "wcm", "http://www.stellent.com/wcm-data/ns/8.0.0"); return $result ;
   Page Image	$ImageResult = $XmlHelper::GetValueByXPath($Content, '//wcm:element[@name="Image"]',"wcm","http://www.stellent.com/wcm-data/ns/8.0.0"); return $ImageResult
